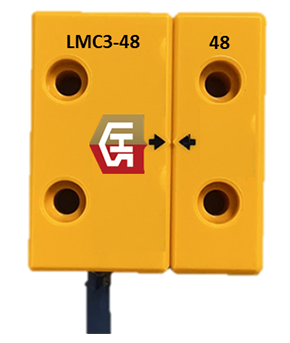

LMC magnetically encoded contactless safety switch

? Compact non-contact magnetic coded switch, easy to install in narrow frame structure.

?12mm wide, can sense the tolerance of height deviation.

?Meet the requirements of Class 3 standards.

?When combined with dual-channel safety relay, coded contactless switch can be used to provide protection up to Class 4 and PLe to ISO13849.

Ordering information

Switch model	Contact configuration	Catheter opening/connector	type
LMC3-48	2NC	3M direct outlet	Coding universal type
LMC4-48	2NC	3M direct outlet	Coded unique type
Description:	Configuring LHS security module can construct security system above PLd.

technical parameter

security level/phase
Safety grade standard	ISO 13849-1， IEC/EN 60947-5-3
Safety classification	Class 3 switches conforming to ISO 13849-1; Dual-channel interlock is suitable for Class 3 or Class 4 systems.
output
Safe output	2個N.C.REEDS
Outlet mode	Direct outlet
technical parameter
working distance	Turn on. min: 8 mm; Disconnect. max: 17 mm
Typical tolerance	See alignment schematic.
Output current (maximum)	200mA
Response time	5ms
the protection grades	IP67(IP69K can be customized)
Operating frequency	lHz
Working temperature	-10~+55℃
relative humidity	5%~95%
material	UL certified thermoplastics

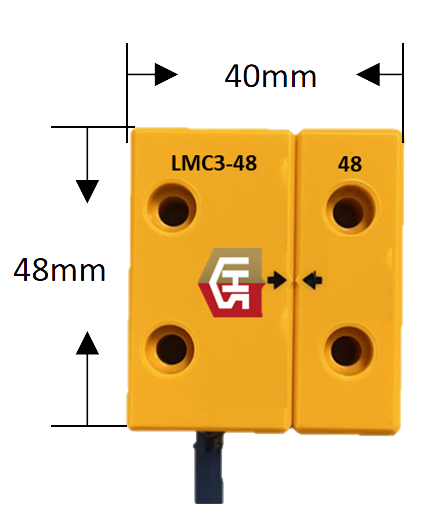

Shape and installation dimensions

Horizontal alignment	The deviation is within ±2mm in the X direction.
	The deviation is between-4 mm and-2 mm and between 2 mm and 4 mm in the X direction.
	Z-direction induction distance > ＞17m
Vertical alignment	The deviation is within ±2mm in the X direction.
	Y direction induction distance 0~8m
	Y direction induction distance > ＞17mm

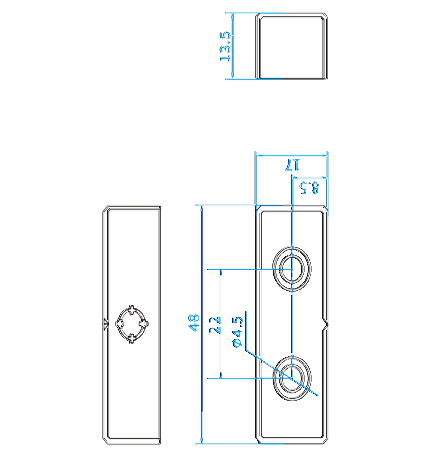

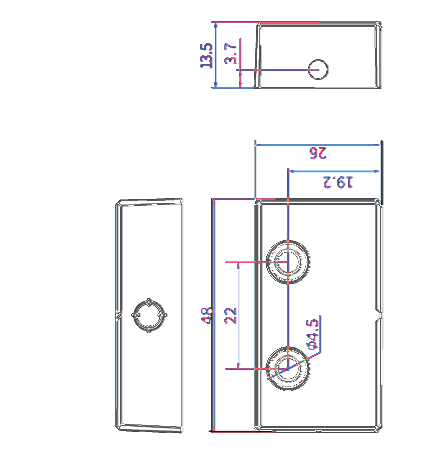

Shape and installation dimensions

Head installation direction

serial number	Signal definition	colour
1	Output A1	black
2	Output A2	white
3	Output B1	ash
4	Output B2	green
Note: A1/A2 is a set of switch outputs. B1/B2 is a set of switch outputs. For constructing safety loop level, please use safety controller.

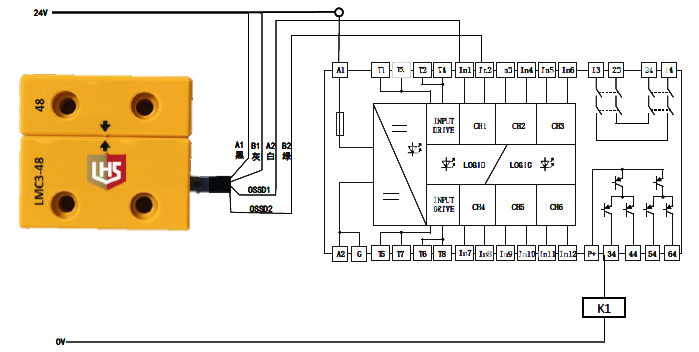

PLD safety circuit wiring case
